Advantages of Directional Drilling Locating System

Long-range：50m，70m，90m full coverage；
High-precision：parallel to the leading products in this industry
Anti-interference：cross-finding method, overcomes passive interference of metal and pipeline networks
Multi-functional：quick-start functions of magnifier, quick-slow guide, positioning

DK007

DK007 Specification；

Depth Range (standard/heavy);40m

Single Frequency Bands：30KHZ

Radio Channels:8 /Radio Frequency：433MHz

Communication Distance:1000m

Rated Battery Voltage：12.5V

Receivers/Remote Displays Battery Life:24h/48h

Dimension:690 * 290 * 135mm /170 * 125* 225mm

Weight:2.88kg/1.3kg

DK008

DK008 Specification；

Depth Range (standard/heavy);40/50m

Dual Frequency Bands：12/30KHZ

Radio Channels:8 /Radio Frequency：433MHz

Communication Distance:1000m

Rated Battery Voltage：12.5V

Receivers/Remote Displays Battery Life:24h/48h

Dimension:690 * 290 * 135mm /170 * 125* 225mm

Weight:2.88kg/1.3kg

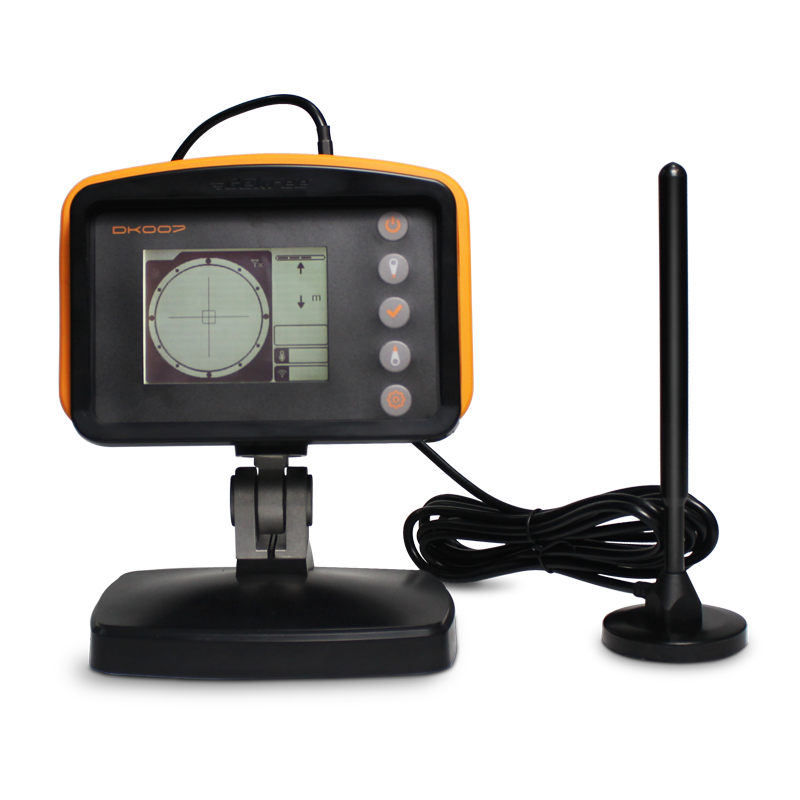

DK007/8

Remote Displays；

Radio Channels:8

Radio Frequency：433MHz

Communication Distance:1000m

Rated Battery Voltage：12.5V

Remote Displays Battery Life:48h

Dimension:170 * 125* 225mm

Weight:1.3kg
